How to Read a Floor Plan (Unit Plan): The Complete 2026 Buyer's Guide

A floor plan is the single most important document when you buy an apartment — it decides how you will actually live, far more than any render or brochure. Yet most buyers glance at it and miss what matters. This deep guide teaches you to read a floor plan (or unit plan) like a professional: the area types, the loading factor, dimensions, orientation, layout quality and the red flags — with examples from Prestige Rosewood.

Floor plan, unit plan, master plan: the difference

These three terms are often confused, so let us settle them first:

• Unit plan — the detailed layout of a single apartment, room by room, with dimensions.
• Floor plan — can mean one unit, or the layout of an entire floor showing how several units sit together.
• Master plan — the whole project: towers, roads, clubhouse, open spaces and amenities. See the Prestige Rosewood master plan for an example.

When a sales team shows you "the plan", be clear which one you are looking at. For a buying decision, the unit plan is what you scrutinise most.

The anatomy of a unit plan

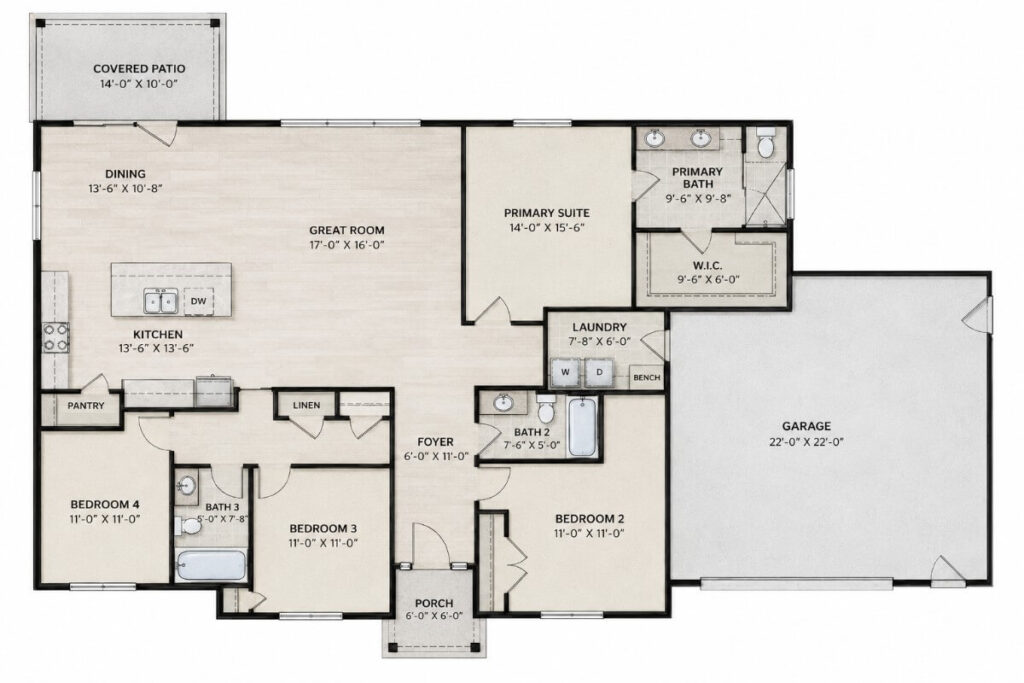

Every unit plan contains the same building blocks. Learn to spot them and a plan stops being a maze of lines:

• Rooms and labels — bedrooms, living, dining, kitchen, toilets, balcony/deck, utility.
• Dimensions — each room is marked length × width (e.g. 12'0" × 11'6").
• Doors and windows — door swings and window openings show circulation and ventilation.
• The north arrow — tells you the orientation, which drives light, heat and Vastu.
• Scale — the ratio that lets you measure true distances on the drawing.

The area types that confuse buyers

This is where most money is won or lost. Three different "areas" describe the same apartment, and they are not interchangeable:

Carpet vs built-up vs super built-up area

Area type	What it includes	Why it matters
Carpet area	Usable floor area within the walls — the space you can lay a carpet on.	The RERA standard. This is what you actually live on.
Built-up area	Carpet area plus the thickness of internal and external walls.	Roughly 10-15% more than carpet.
Super built-up area	Built-up area plus a share of common areas (lobby, stairs, lift).	The "saleable" area pricing is often quoted on.

The Real Estate (Regulation and Development) Act made carpet area the legal standard precisely to stop confusion. Always cross-check the carpet area quoted to you against the registered figure on the official Karnataka RERA portal before you commit.

Loading factor and carpet efficiency

The gap between carpet and super built-up is called the loading factor. If a home has 1,000 sq ft carpet sold as 1,300 sq ft super built-up, the loading is 30%. The formula:

• Loading % = (Super built-up − Carpet) ÷ Carpet × 100
• Carpet efficiency = Carpet ÷ Super built-up × 100

A loading of 25-30% (efficiency of roughly 70-75%) is normal for apartments. The lower the loading, the more usable space you get for every rupee. When you compare two projects, compare them on carpet area and loading — not on the headline super built-up number. Our price estimator and price page work from clear figures so you can do exactly that.

Reading dimensions and furniture fit

Numbers on a plan are abstract until you map them to real life. A 10' × 10' bedroom holds a queen bed and a wardrobe with little to spare; a 12' × 12' room feels genuinely comfortable. Walk each room in your head: where does the bed go, can two people pass at the foot of it, does the wardrobe block a window? Check that the living and dining can hold your sofa and table along an unbroken wall, and that the kitchen has a sensible work triangle between sink, hob and fridge.

Orientation, light and ventilation

The north arrow is not decoration. East-facing rooms get gentle morning light; west-facing rooms take the harsh afternoon heat; north light is even and cool. Cross-ventilation — windows on two sides of a room — keeps a home naturally fresh and is one of the most underrated qualities of a good plan. Lakefront and corner units, like several at Prestige Rosewood, often enjoy better light and airflow. If orientation matters to you, read our Vastu guide.

Common layout types

Indian apartments cluster into a few recognisable layouts. Knowing them helps you compare quickly:

• 2 BHK — two bedrooms; the efficient entry format. See the Prestige Rosewood 2 BHK.
• 3 BHK — the family standard, sometimes with a study or utility deck.
• 3 BHK + study — a flexible work-from-home or guest room.
• 4 BHK — premium, often with a maid's room and a larger deck; see 4 BHK with maid's room.

Browse all configurations on the Prestige Rosewood floor plans page.

Red flags to spot in any floor plan

A trained eye catches problems before booking. Watch for:

• Dead space — long internal corridors that you pay for but cannot use.
• Poor ventilation — bedrooms or kitchens with windows on only one side, or opening into a shaft.
• Awkward kitchens — a broken work triangle, or a fridge that cannot open fully.
• Door clashes — doors that swing into each other or block switches.
• Toilets over living areas — check stacking in the floor plan of the unit above.
• Furniture that will not fit — beautiful on paper, cramped in reality.

How Prestige Rosewood approaches its plans

Prestige Rosewood's units are designed around cross-ventilation, lake or landscape views and efficient carpet — the low-density FAR of 2.97 and 80%+ open ground give the towers room to breathe, which translates into better light and airflow inside each home. You can study the layouts on the floor plans page, see them in context on the master plan, and experience them through the sample flat and virtual tour.

Your floor-plan checklist before booking

• Confirm the RERA carpet area, not just super built-up.
• Calculate the loading factor and compare it across projects.
• Check orientation and cross-ventilation for each main room.
• Map your furniture into the dimensions.
• Look for dead space and door clashes.
• Match the unit to your budget with the price estimator.

Read a plan this way and you will never be surprised on handover. If you are still deciding between buying now or later, our pre-launch vs ready-to-move guide is the logical next read — or go straight to the Prestige Rosewood overview.
